Wiring Guide & ESD Protection

// Section 01

Understanding the V5 Brain Ports

The V5 Brain has three types of ports. Knowing which port handles which device — and why port assignment matters — prevents hours of debugging confusion.

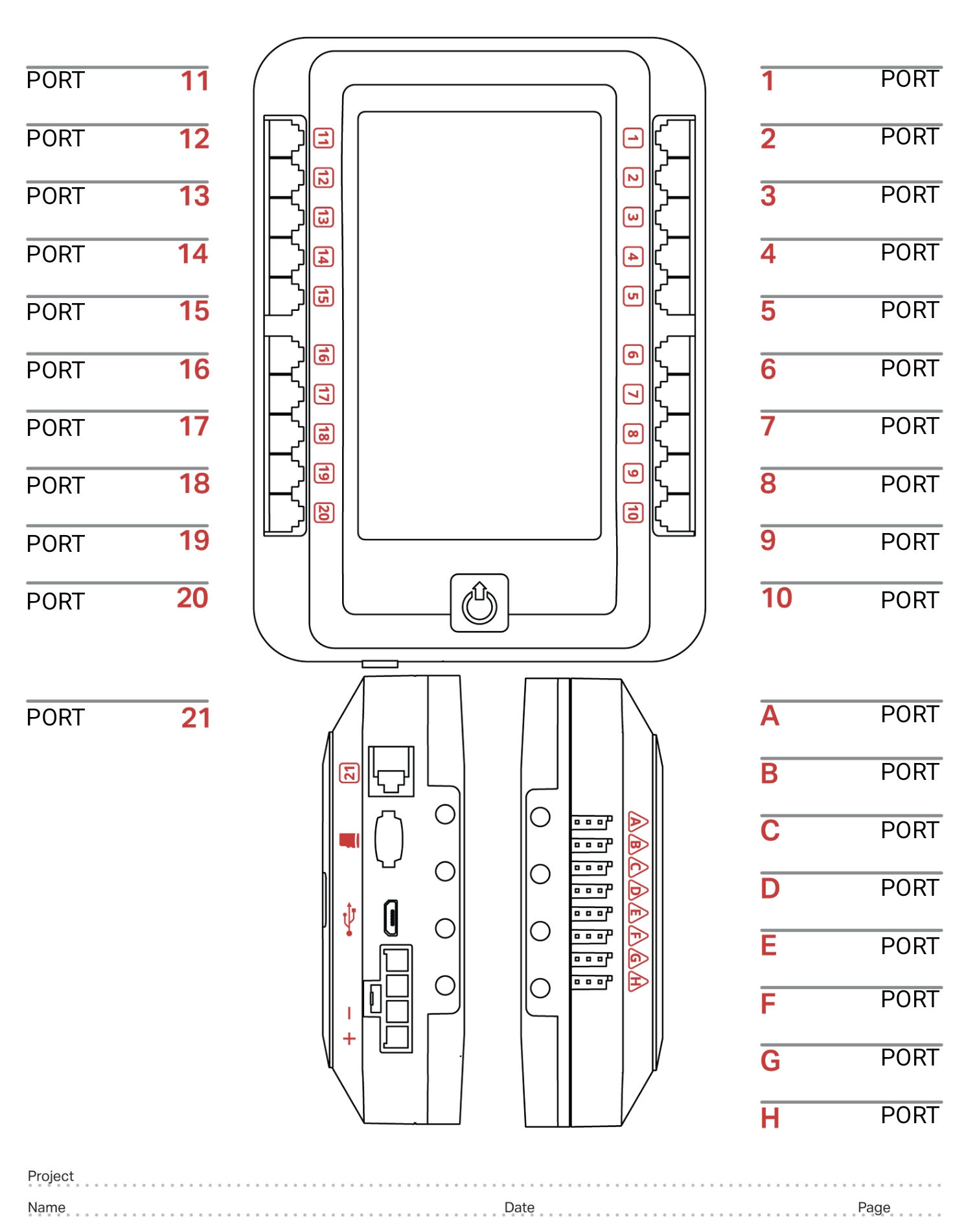

Brain Port Layout

The V5 Brain has 21 smart ports (labeled 1–21), port 21 is the dedicated radio port and should not be used for anything else, leaving 20 usable motor/sensor ports. It also has 8 three-wire analog ports (labeled A–H) for legacy sensors.

Smart Ports (1–21)

1smart

2smart

3smart

4smart

5smart

6smart

7smart

8smart

9smart

10smart

11smart

12smart

13smart

14smart

15smart

16smart

17smart

18smart

19smart

20smart

3-Wire Analog Ports (A–H)

■ Smart ports: V5 motors, IMU, rotation sensors, distance sensors, GPS sensor, optical sensors, vision sensor
■ 3-wire ports: bumper switches, limit switches, ADI expander, legacy sensors
■ Port 21 (not shown): dedicated radio — never plug anything else here

Strategic Port Assignment

Which motor goes in which port matters more than most teams realize. The V5 Brain’s internal wiring groups ports in pairs — adjacent ports share some circuitry. Best practices:

Drive motors on ports 1–10 or 11–20, not mixed. Some teams group left drive on ports 1–5 and right drive on ports 6–10 so the physical cable runs are shorter and organized.
IMU on a port far from motors if possible. Heavy motor current draw can create minor electrical noise. Ports 10, 11, or 20 are often used for sensors.
Document every assignment before coding. The Robot Pre-Check port log is the right tool for this.
Leave 1–2 ports empty as spares. If a port dies at competition, you can rewire to the spare and update the port number in one line of code.

💡

Label your cables by port number. Use masking tape and a marker, or cable labels, at both ends of every motor cable. When a cable needs replacement at competition, you should be able to identify which cable it is in under 10 seconds without consulting any documentation.

1 / 4

// Section 02

Cable Management That Survives Competition

A robot with good cable management is faster to repair, less likely to fail mid-match, and easier to inspect. These practices take 30 extra minutes during build and save hours of debugging.

✅ Do This

✅Zip-tie cables to the frame at intervals of 2–3 inches through metal holes or zip-tie mounts

✅Use the appropriate cable length — measure with the robot at full extension before cutting

✅Add a service loop (small slack coil) at every moving joint — arms, lifts, intakes that rotate

✅Route cables along the inside of C-channels where they are protected from snags

✅Click every connector until you hear the latch engage, then tug gently to confirm

✅Keep the Brain screen and button accessible — you need to reach these at competition

❌ Never Do This

❌Leave cables loose and draped across the inside of the robot — they snag on mechanisms

❌Pull cables taut from motor to Brain with no slack — they will disconnect under stress

❌Route cables across moving joints without a service loop — cables fatigue and break

❌Use excess cable length stuffed loosely into a corner — it will catch on something

❌Crimp custom cable lengths unless you have proper VEX crimping tools and practice

❌Zip-tie cables so tightly they crush the insulation — this damages the cable over time

The Service Loop — Critical for Moving Mechanisms

Any mechanism that rotates, pivots, or extends requires a service loop in the cable that feeds it. A service loop is a small coil of extra cable at the joint point — it provides the slack the cable needs to move without pulling tight or fatiguing at the bend point.

Arms and lifts: the cable from the motor to the Brain must have enough slack that at full arm extension, the cable is still slack — not taut. Test by moving the arm to full extension and watching the cable.
Intakes: if the intake flips out or folds, the cable to the intake motor needs slack to accommodate that motion.
Rule of thumb: a service loop should have 2–3 inches of extra cable coiled at the joint, secured with a loose zip tie that still allows the coil to move.

⚠️

The most common match failure on a moving mechanism: the cable was fine during testing but pulls tight under the stress of a match and disconnects. Always test cables at the full range of motion of every mechanism before competition day — not just at rest position.

Cable Length Selection

VEX sells smart cables in 6", 8", 12", 24", and 36" lengths. Select the shortest cable that allows the service loop for the mechanism’s full range of motion. Shorter cables weigh less, create less clutter, and are less likely to snag. Teams should carry at least two spare cables of each length (8" and 12") to every event.

2 / 4

// Section 03

ESD — The Silent Port Killer

Electrostatic Discharge is one of the most common and most surprising causes of permanent V5 Brain damage. Most teams never know it happened until a port stops working mid-season.

⚡

ESD can permanently disable a V5 Brain smart port. The damage is irreversible — there is no software fix, no restart that recovers it. A port killed by ESD is dead permanently. Replacement requires sending the Brain to VEX for repair or buying a new Brain. Prevention costs nothing. Recovery is expensive.

What ESD Is and How It Happens on a VRC Robot

Electrostatic Discharge is the sudden release of built-up static electricity through an electrical path. You have experienced this as a small shock when touching a doorknob after walking across carpet. On a VRC field:

Robot drives on carpet — wheels rolling on the VRC carpet surface build up static charge on the robot’s metal frame.
Static accumulates — the charge builds until it finds a path to discharge.
Discharge path goes through the motor — the motor’s metal casing is connected to the robot frame. The discharge travels through the motor cable.
The V5 Brain smart port takes the hit — the RS-485 communication chip in the port absorbs the discharge. At sufficient voltage, it fails permanently.

Warning Signs of ESD Damage

A motor or sensor suddenly shows as disconnected after a match, even though the cable is seated correctly
A port works intermittently — the device connects and disconnects without any physical change
Flashing red LED on the port indicator on the Brain
The device works on a different port but not on the port it has always been in

ℹ️

ESD damage is more common on competition fields than at home practice. Competition venues often have low humidity (which increases static buildup), many robots driving on the same field surface, and longer continuous run times. Teams that never see ESD issues at home sometimes lose ports at their first major event.

Why Some Ports Are More Vulnerable

Ports connected to drive motors are the highest risk because drive motors have the most physical contact with the field surface through the wheels. The discharge path is: carpet → wheels → motor shaft → motor casing → motor cable → Brain port. Drive motor ports are at highest risk; mechanism motors (arms, intakes) with no ground contact are at lower risk.

3 / 4

// Section 04

ESD Prevention & Recovery

Prevention costs almost nothing. Recovery from a dead port costs time, money, and potentially a competition result.

Prevention Methods — Use All of These

1. Anti-Static Spray

Anti-static spray applied to the robot’s metal frame reduces the buildup of static charge by increasing the surface conductivity just enough to dissipate charge gradually rather than allowing it to accumulate. Apply to the robot frame (not the electronics) before each competition. Available at hardware and electronics stores. One can lasts a full season.

2. Keep Cables Away From Metal Shavings

Metal shavings from cutting and drilling VEX metal are conductive. They can fall into smart port connectors and create a short circuit path that accelerates ESD damage. Tips:

Cover the Brain with tape or a cloth when drilling or cutting metal near it
Clean metal shavings off the robot thoroughly after any build work
Use pre-crimped VEX cables rather than custom-crimped cables — custom crimp quality varies and a poor crimp creates a vulnerable connection

3. Use Rubber Wheel Inserts

Some teams insert rubber or foam between the wheel hub and the drive shaft to electrically isolate the wheel from the drivetrain. This breaks the discharge path at the wheel. This reduces ESD risk significantly for drive motors. The tradeoff is a slight reduction in torque transmission consistency — test carefully if you try this.

4. Have a Spare Port Plan

Even with perfect prevention, ESD can still strike. The best recovery is having a plan before it happens:

Leave 1–2 smart ports unused on the Brain as designated spare ports
Document your port assignments in the port log so any team member can rewire to a spare port in under 5 minutes
Know which one line of code to change to update the port number — it is a single number in robot-config.cpp

✅

Competition day ESD recovery drill: practice once with your team — intentionally pretend port 3 has died and time how long it takes to move the motor to port 19, update the code, rebuild, and upload. Teams that have done this drill can recover in 3–5 minutes. Teams that have not may take 20+ minutes in a stressful competition environment.

If a Port Dies at Competition

Confirm it is actually dead — swap to a different cable first. A bad cable mimics a dead port.
Move the motor to a spare port — disconnect from the dead port, connect to your pre-designated spare.
Update the port number in robot-config.cpp — one number change in the motor constructor.
Build and upload — pros build-upload from the terminal. Under 90 seconds on a working laptop.
Test before the next match — verify the motor shows in Brain Device Info and responds correctly.

⚠️

Do not try to repair a dead port during competition. The repair involves de-soldering the RS-485 chip inside the Brain — a precision soldering job that should only be attempted in a controlled environment with proper equipment, not in a competition pit with 20 minutes until your next match.

⚙ STEM Highlight Electrical Engineering: Electrostatic Discharge & Circuit Protection

ESD (Electrostatic Discharge) is a transient overvoltage event — a voltage spike of thousands of volts lasting microseconds. The V5 Brain’s smart ports use MOSFET circuits that are vulnerable to ESD because their gate oxide (a few nanometers thick) breaks down irreversibly at voltages above ~20V. Walking on carpet generates 10,000–35,000V static charge — touching a robot’s metal frame discharges this through the nearest conducting path, which may be a port’s gate oxide. The SigBots ESD board adds transient voltage suppression (TVS) diodes — components that clamp voltage spikes before they reach sensitive inputs.

🎤 Interview line: “ESD destroys V5 ports via dielectric breakdown — the gate oxide in the MOSFET input circuit is only nanometers thick and ruptures at voltages above its rating. Static discharge from a student walking on carpet can exceed 10,000V. TVS diodes clamp transient spikes, protecting the gate by providing a lower-resistance discharge path.”

🔬 Check for Understanding

You disconnect a smart cable from the Brain while the robot is powered on. This is a risk because:

The motor could spin uncontrollably

The Brain may reset due to power interruption

Disconnecting under power can generate a voltage spike (back-EMF or inductive kick) that exceeds the port’s ESD tolerance and permanently damages the port

The cable connector will be damaged mechanically
